Stainless Steel Woven Wire Mesh – 201, 304, 316, & More
Various Mesh Sizes
In stock- Delivery across the UAE. Terms and conditions apply.
- Manufacturer warranty. Service warranty on eligible products; spare parts are chargeable.
- Flexible payment. Cash, card, bank transfer, cheque after delivery or advance.
Product details

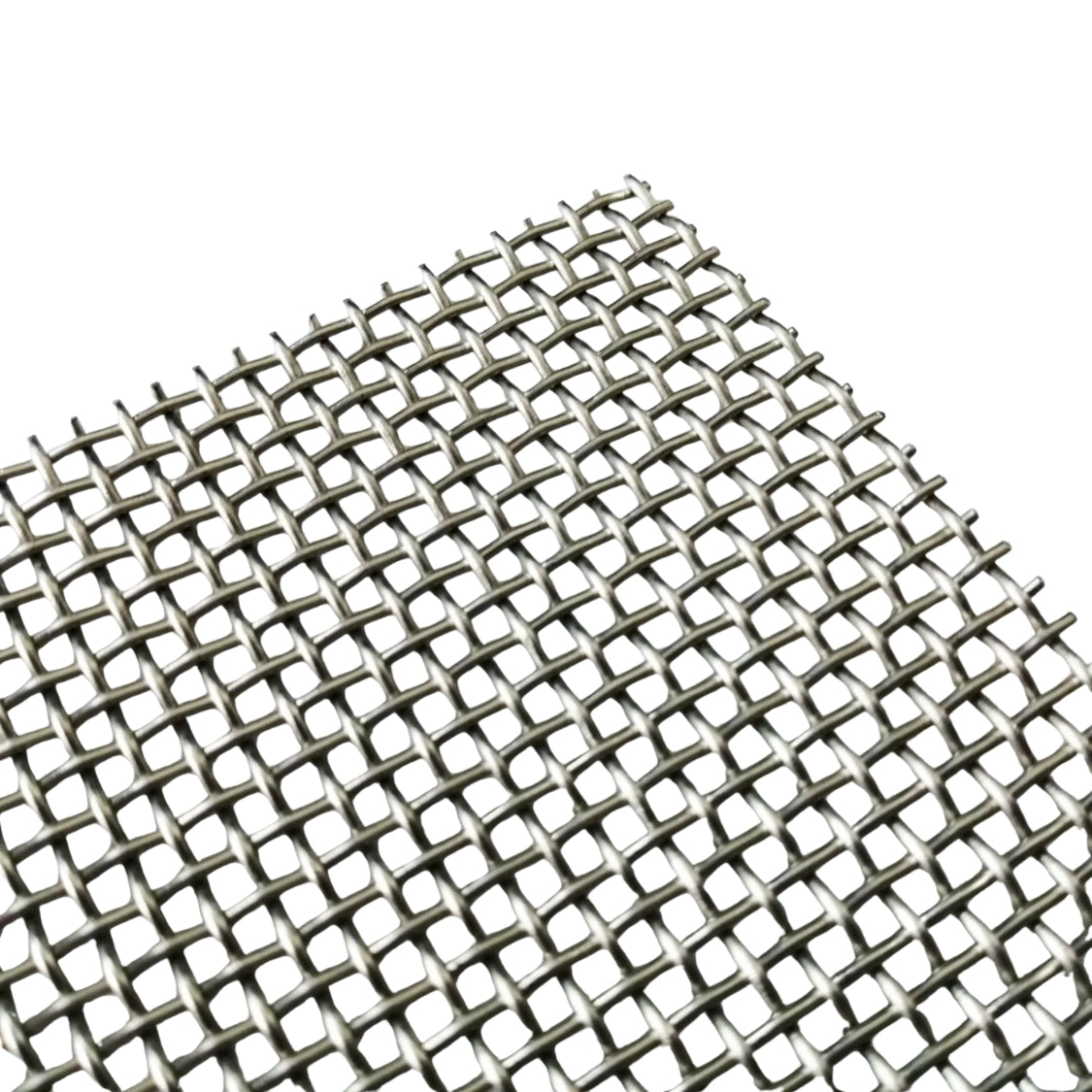

Stainless Steel Woven Wire Mesh is made from high-quality stainless steel grades including 201, 202, 304, 304L, 316, 316L, 308L, 321, and Duplex 2205, 2207, 2304, 2900. Ideal for filtration, sieving, fencing, shielding, and industrial separation.
These precision-engineered woven wire meshes are designed for excellent corrosion resistance, mechanical strength, and long-term durability even in chemical and marine environments.
Available Materials:
• Stainless Steel: 201, 202, 304, 304L, 316, 316L, 308L, 321
• Duplex Stainless Steel: 2205, 2207, 2304, 2900
Common Applications:
• Filtration & sieving
• Oil & gas industry
• Chemical & marine use
• Insect screens & fencing
• Food processing & pharmaceutical plants
• EMI/RFI shielding
Standard Roll Sizes:
• Width: 1 Meter / 1.22 Meter / 1.5 Meter
• Length: 30 Meter / 50 Feet / 100 Feet
• Custom sizing available on request
Available Specifications
| Mesh Size (per inch) | Wire Diameter (in/mm) | Aperture (mm) | Open Area (%) |
|---|---|---|---|
| 1 x 1 | 0.11 in / 3.0 mm | 22.4 mm | 77.80% |
| 2 x 2 | 0.059 in / 1.5 mm | 11.2 mm | 77.70% |
| 2 x 2 | 0.047 in / 1.2 mm | 11.5 mm | 82.00% |
| 4 x 4 | 0.054 in / 1.37mm | 7.09 mm | 70.10% |
| 4 x 4 | 0.031 in / 0.8 mm | 5.55 mm | 76.00% |
| 3 x 3 | 0.047 in / 1.2 mm | 5.15 mm | 65.80% |
| 5 x 5 | 0.039 in / 1.0 mm | 4.08 mm | 64.50% |
| 6 x 6 | 0.047 in / 1.2 mm | 3.88 mm | 58.30% |
| 6 x 6 | 0.025 in / 0.65mm | 3.58 mm | 71.60% |
| 5 x 5 | 0.039 in / 1.0 mm | 3.23 mm | 58.20% |
| 8 x 8 | 0.027 in / 0.7 mm | 2.47 mm | 61.00% |
| 8 x 8 | 0.047 in / 1.2 mm | 1.97 mm | 38.00% |
| 10 x 10 | 0.018 in / 0.46mm | 2.08 mm | 67.00% |
| 12 x 12 | 0.019 in / 0.50mm | 2.04 mm | 64.00% |
| 12 x 12 | 0.013 in / 0.35mm | 1.76 mm | 69.00% |
| 10 x 10 | 0.015 in / 0.40mm | 1.71 mm | 65.00% |
| 14 x 14 | 0.013 in / 0.35mm | 1.46 mm | 65.00% |
| 16 x 16 | 0.015 in / 0.40mm | 1.41 mm | 60.00% |
| 16 x 16 | 0.013 in / 0.35mm | 1.23 mm | 60.00% |
| 14 x 14 | 0.015 in / 0.40mm | 1.18 mm | 55.00% |
