Self Tapping Pan Head NP – UAE

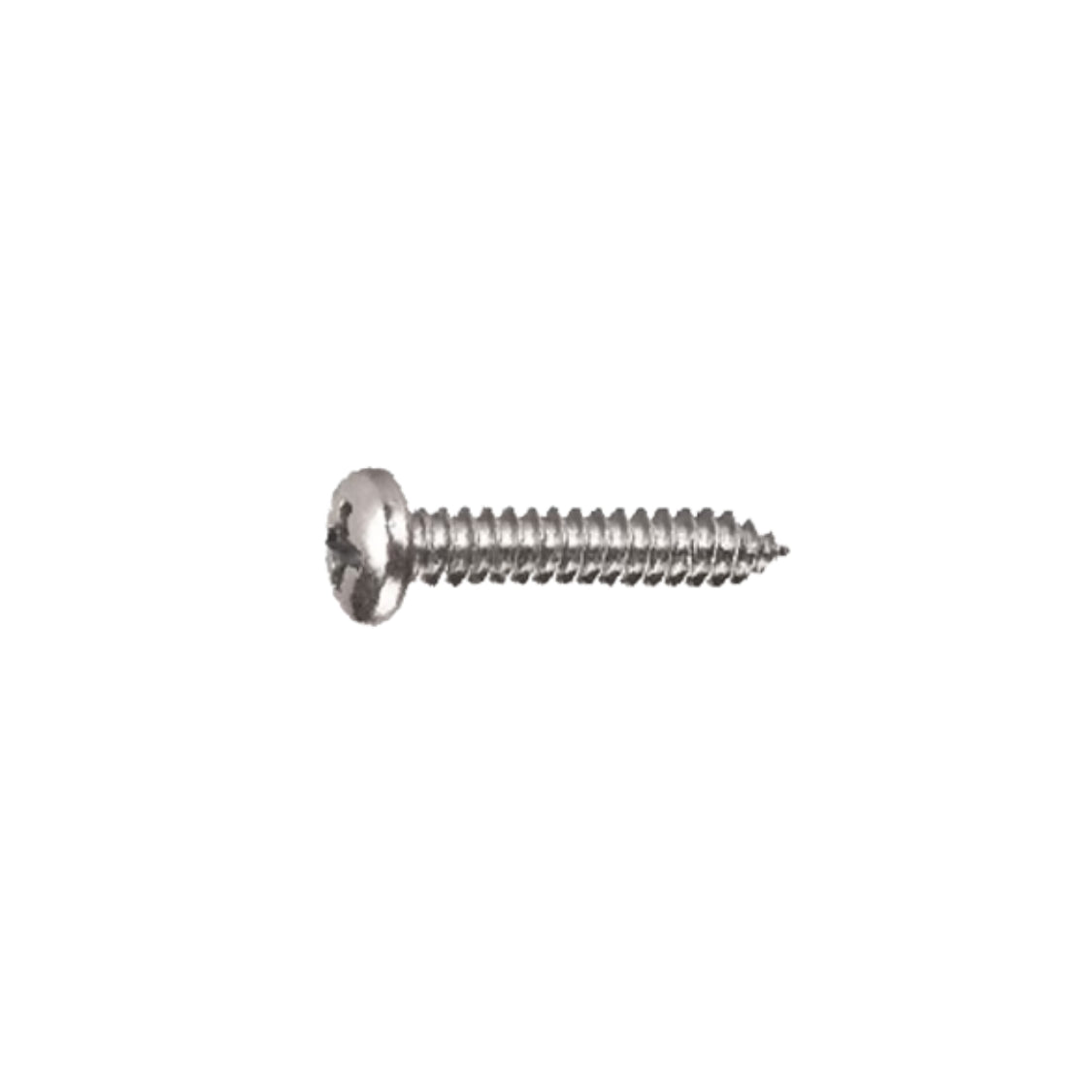

Self Tapping Pan Head NP – Carbon Steel C1022

These self tapping pan head screws are manufactured from carbon steel C1022, providing excellent strength and durability. The Phillips pan head design ensures smooth installation with standard tools, while the nickel plating (NP) offers corrosion resistance and a polished finish. These screws are ideal for wood, metal, and plastic fastening, delivering a secure hold and reliable performance for both industrial and household applications.

Specifications:

• Material: Carbon Steel C1022

• Head Type: Phillips Pan Head

• Finish: Nickel Plated (NP)

• Function: Self tapping for fast and secure fastening

Applications:

• Woodworking and cabinetry

• Metal fabrication

• Electrical and hardware installations

• Plastic component fastening

• General construction and maintenance


  Sizes (inches) D × L	Sizes (mm) D × L	Recess (M)	Qty/Box (pcs)
  #6 × 1/2	3.5 × 13	#2	900
  #6 × 5/8	3.5 × 16	#2	900
  #6 × 3/4	3.5 × 19	#2	900
  #6 × 1	3.5 × 25	#2	900
  #6 × 1-1/4	3.5 × 32	#2	900
  #6 × 1-1/2	3.5 × 38	#2	900
  #6 × 2	3.5 × 50	#2	450
  #8 × 1/2	4.2 × 13	#2	900
  #8 × 5/8	4.2 × 16	#2	900
  #8 × 3/4	4.2 × 19	#2	900
  #8 × 1	4.2 × 25	#2	900
  #8 × 1-1/4	4.2 × 32	#2	900
  #8 × 1-1/2	4.2 × 38	#2	900
  #8 × 2	4.2 × 50	#2	450
  #8 × 2-1/2	4.2 × 65	#2	450
  #8 × 3	4.2 × 75	#2	225
  #10 × 1/2	4.8 × 13	#2	900
  #10 × 3/4	4.8 × 19	#2	900
  #10 × 1	4.8 × 25	#2	900
  #10 × 1-1/4	4.8 × 32	#2	900
  #10 × 1-1/2	4.8 × 38	#2	450
  #10 × 2	4.8 × 50	#2	450
  #10 × 2-1/2	4.8 × 65	#2	450
  #10 × 3	4.8 × 75	#2	225
  #10 × 4	4.8 × 100	#2	225
  #12 × 1	5.5 × 25	#3	900
  #12 × 1-1/4	5.5 × 32	#3	450
  #12 × 1-1/2	5.5 × 38	#3	450
  #12 × 2	5.5 × 50	#3	225
  #12 × 3	5.5 × 75	#3	225
  #12 × 4	5.5 × 100	#3	225
